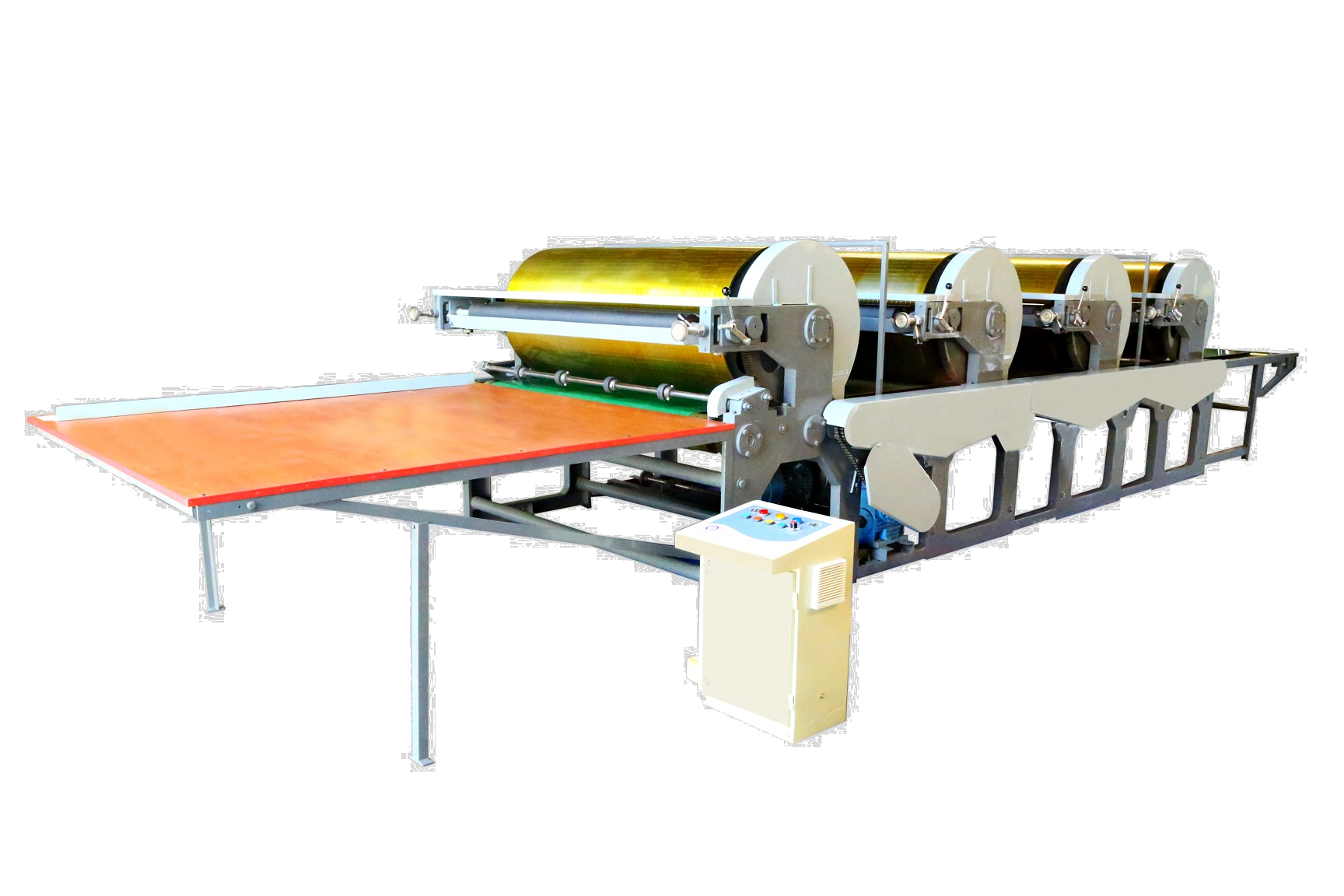

Flexographic Manual Printing Machine

Manual Printing Machine

Flexographic printing machine fabricated of Cast Iron,
Suitable for HDPE/PP woven sacks having

  • Printing Area : 1143 mm X 711 mm
  • Maximum Bags Passing Width : 813 mm
  • Speed : 2500-3000 BPH
Comprising of :
  • a) Electric Motor: 1hp/2hp/3hp / 1440 rpm 3 phase / 50 cycle coupled with reduction gear V-belt pulleys, chain wheels, chain tightening device, chain cover, gear wheels (hov cut) and covered,
  • b) Separate chambers with cover for different colors, C.I. side bracket, bearing housing with heavy duty ball bearings to hold main drum duly grinded and hard chrome,
  • c) Eccentric bearing housing with self aligned bearings to hold two neoprene coated M.S. Shells for transferring color to stereo, with color tray & cover,
  • d) Guide rolls made of seamless pipe duly turned. Roll beneath the main drum fitted with pressure releasing system and operational from feeding end,
  • e) Gears made of cast iron except that of mild steel for driving main drum and are hovecut,
  • f) Conveyor belts of rubber coated endless to carry printed bags from one end to the other with belt tightening arrangement,
  • g) Front platform with laminated sheet complete with margin setter &
  • h) One ON / OFF Switch and a set of spanner.
